Stereo Ecoder

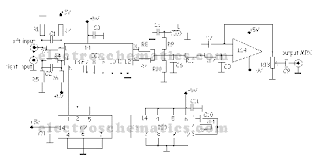

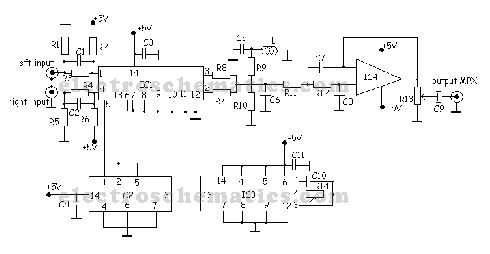

Buat yg memiliki pemancar FM agar keluarannya Stereo silahkan di coba salah satu skema di bawah ini



Daf Komponen :

R1 = R5 = 10K

R2 = R6 = 220K R2 = R6 = 220K

R3 = R4 = R9 = 47K R3 = R4 = R9 = 47k

R7 = R8 = 4.7K R7 = R8 = 4.7K

R10 = 68K R10 = 68K


R11 = R12 = 27K R11 = R12 = 27K

R13 = 2.2K variable R13 = 2.2k variabel

R14 = 20K liniar R14 = 20K liniar

C1 = C2 = 1nF C1 = C2 = 1nF

C3 = C4 = C11 = 100nF C3 = C4 = C11 = 100nF

C5 = C10 = 10nF C5 = C10 = 10nF

C6 = 470pF C6 = 470pF

C7 = 100pF C7 = 100pF

C8 = 68pF C8 = 68pF


C9 = 10uF C9 = 10uF

L = 6.8mH L = 6.8mH

IC1 = 4066 IC1 = 4.066

IC2 = 4013 IC2 = 4.013

IC3 = 4047 IC3 = 4.047

IC4 = 741 IC4 = 741
